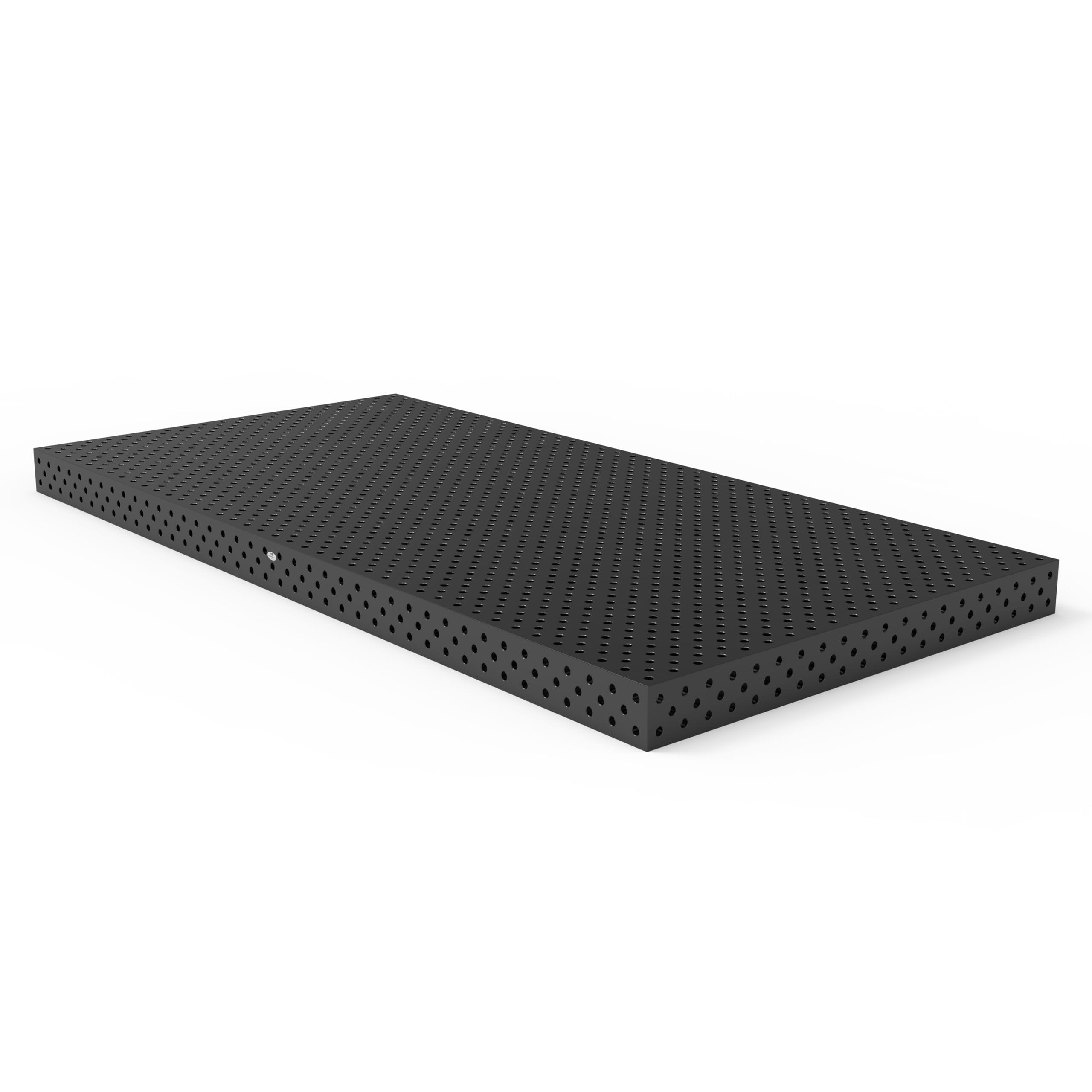

    3D Welding Table 4000x2000mm D28 TA284020D

    The TA284020D is a 4000 × 2000 mm D28 welding table for positioning, clamping and welding machine frames, structural frames and other welded assemblies. A nitrided steel surface and mounting holes on the tabletop and side panels allow fixtures to be arranged around the workpiece.

    Request a Quote
    SKU: TA284020D Category: Tag:
    Description

    3D Welding Table 4000x2000mm D28 TA284020D

    The TA284020D provides a large working surface for fabricating machine frames, structural frames and other welded assemblies. D28 clamps, stops and locating accessories can be positioned to suit the shape and size of the workpiece.

    Tabletop holes are arranged on a 100 × 100 mm grid. Holes in the side panels provide additional mounting positions for angle brackets, supports and table extensions. Fixtures can be repositioned when changing between jobs.

    Main Features

    • 4000 × 2000 mm working surface for large workpieces and assemblies.
    • D28 hole system for mounting D28 fixturing accessories.
    • Nitrided Q355B steel with a hardened working surface.
    • Top and side mounting holes for horizontal and vertical fixture setups.
    • Grid markings and millimetre scales to help position workpieces and fixtures.
    • Reinforced underside with ribs supporting the tabletop.

    Technical Specifications

    Item Specification
    Model TA284020D
    Working surface 4000 × 2000 mm
    Hole system D28
    Tabletop hole spacing 100 × 100 mm
    Material Q355B steel
    Surface treatment Nitriding and oxidation
    Surface hardness HV 400–750

    Request a Quote
