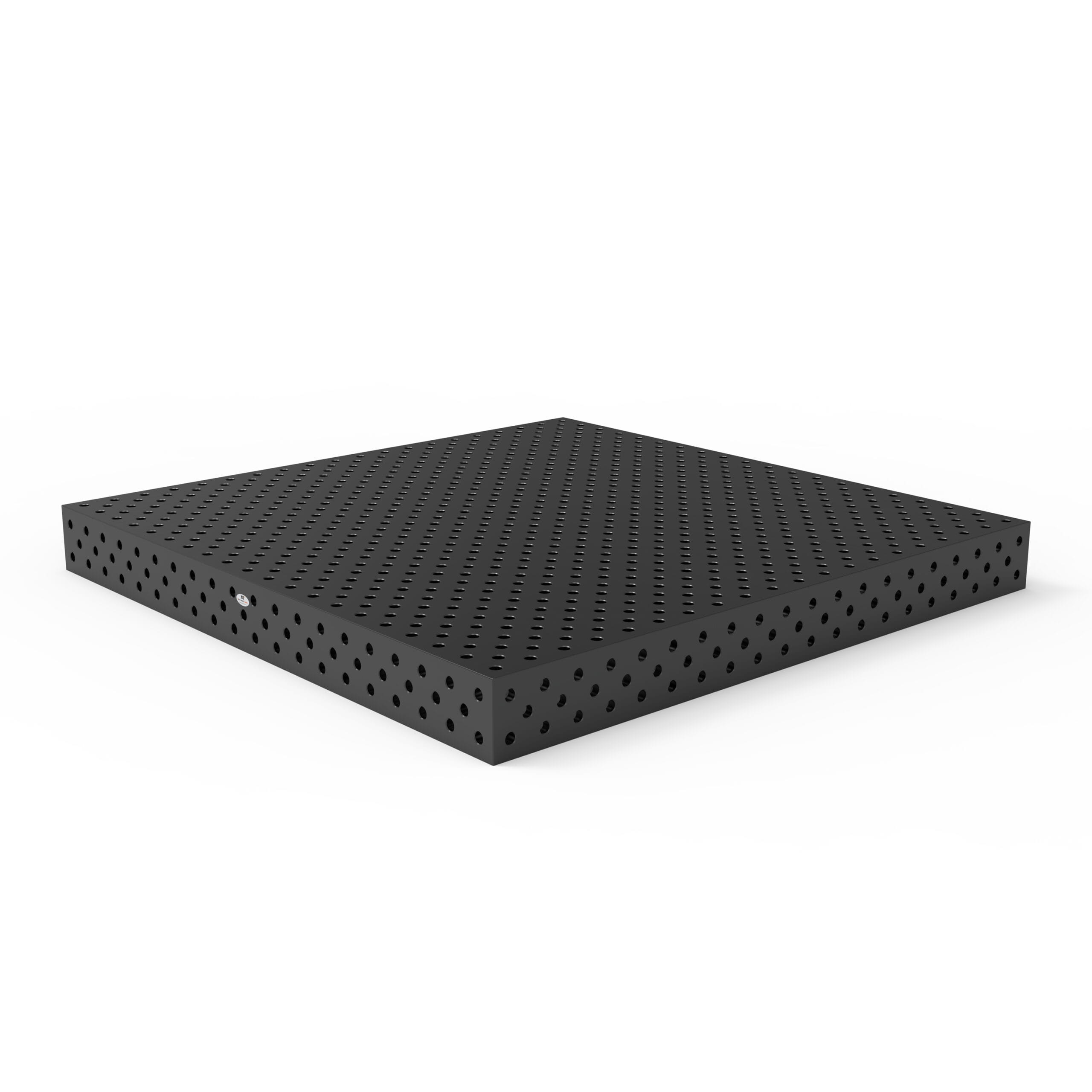

3D Welding Table 2000x2000mm D28 TA282020D
The TA282020D is a 2000 × 2000 mm D28 welding table for positioning, clamping and welding machine bases, structural frames and wide assemblies. A nitrided steel surface and mounting holes on the tabletop and side panels allow fixtures to be arranged around the workpiece.
3D Welding Table 2000x2000mm D28 TA282020D
The TA282020D provides a large square working surface for fabricating machine bases, structural frames and wide assemblies. D28 clamps, stops and locating accessories can be positioned to suit the shape and size of the workpiece.
Tabletop holes are arranged on a 100 × 100 mm grid. Holes in the side panels provide additional mounting positions for angle brackets, supports and table extensions. Fixtures can be repositioned when changing between jobs.
Main Features
- 2000 × 2000 mm working surface for wide workpieces and square assemblies.
- D28 hole system for mounting D28 fixturing accessories.
- Nitrided Q355B steel with a hardened working surface.
- Top and side mounting holes for horizontal and vertical fixture setups.
- Grid markings and millimetre scales to help position workpieces and fixtures.
- Reinforced underside with ribs supporting the tabletop.
Technical Specifications
| Item | Specification |
|---|---|
| Model | TA282020D |
| Working surface | 2000 × 2000 mm |
| Hole system | D28 |
| Tabletop hole spacing | 100 × 100 mm |
| Material | Q355B steel |
| Surface treatment | Nitriding and oxidation |
| Surface hardness | HV 400–750 |
