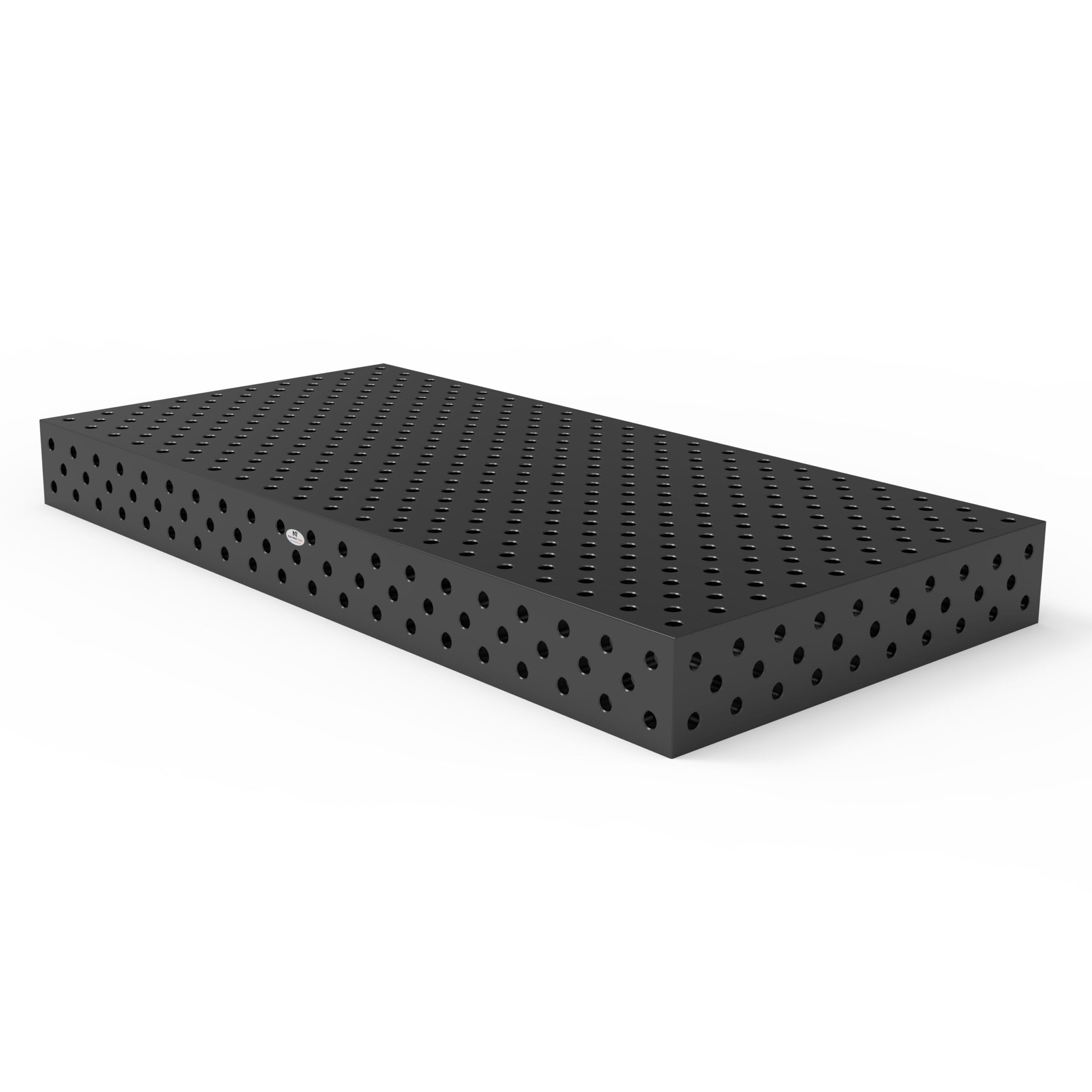

3D Welding Table 2000x1000mm D28 TA282010D
The TA282010D is a 2000 × 1000 mm D28 welding table for positioning, clamping and welding machine frames, railings and welded assemblies. A nitrided steel surface and mounting holes on the tabletop and side panels allow fixtures to be arranged around the workpiece.
Description
3D Welding Table 2000x1000mm D28 TA282010D
The TA282010D provides a working surface for fabricating machine frames, railings and welded assemblies. D28 clamps, stops and locating accessories can be positioned to suit the shape and size of the workpiece.
Tabletop holes are arranged on a 100 × 100 mm grid. Holes in the side panels provide additional mounting positions for angle brackets, supports and table extensions. Fixtures can be repositioned when changing between jobs.
Main Features
- 2000 × 1000 mm working surface for machine frames and welded assemblies.
- D28 hole system for mounting D28 fixturing accessories.
- Nitrided Q355B steel with a hardened working surface.
- Top and side mounting holes for horizontal and vertical fixture setups.
- Grid markings and millimetre scales to help position workpieces and fixtures.
- Reinforced underside with ribs supporting the tabletop.
Technical Specifications
| Item | Specification |
|---|---|
| Model | TA282010D |
| Working surface | 2000 × 1000 mm |
| Hole system | D28 |
| Tabletop hole spacing | 100 × 100 mm |
| Material | Q355B steel |
| Surface treatment | Nitriding and oxidation |
| Surface hardness | HV 400–750 |
