    3D Welding Table 1500x1000x200mm D28 TA281510N

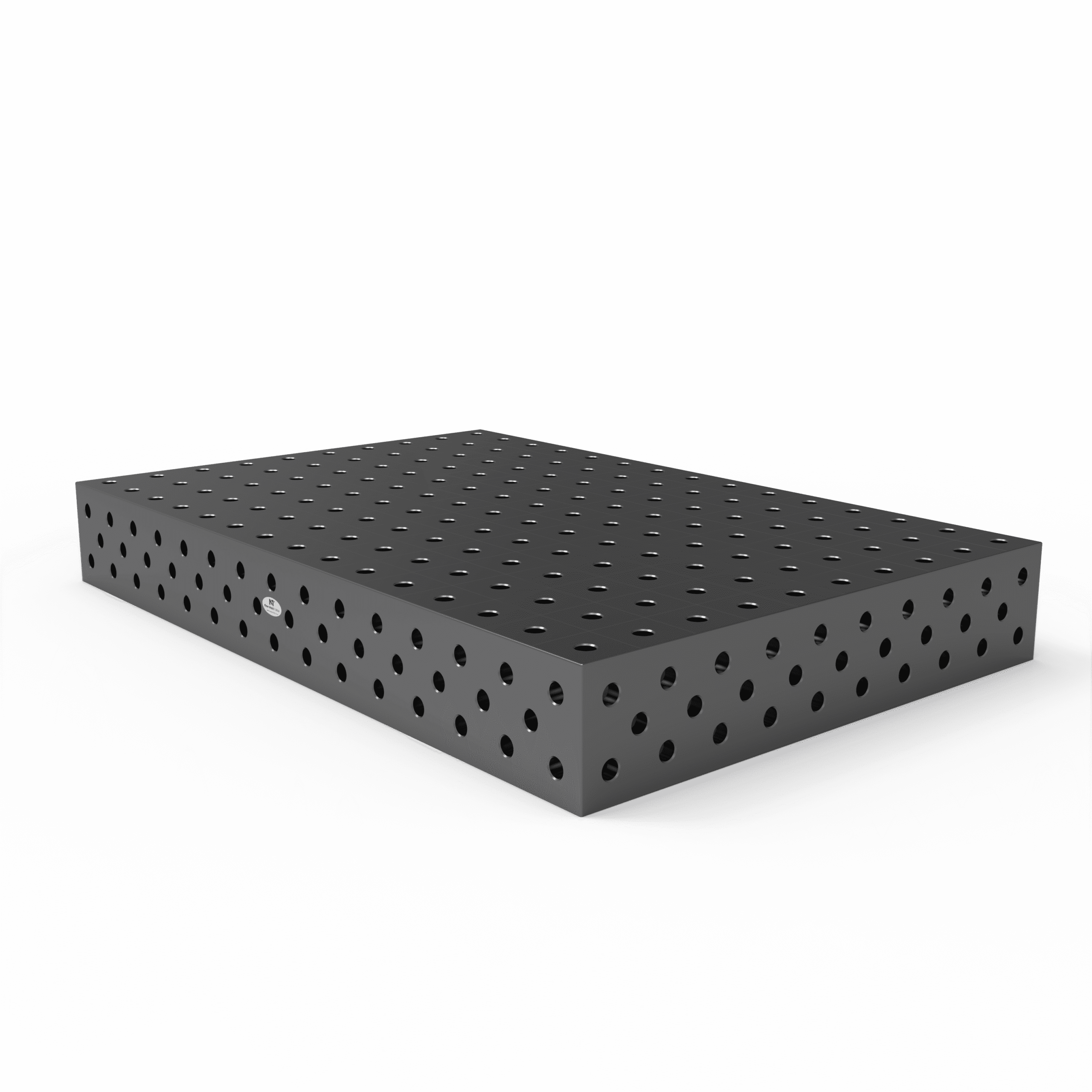

    The TA281510N is a 1500 × 1000 mm D28 welding table for positioning, clamping and welding furniture frames, railings and welded components. A nitrided steel surface and mounting holes on the tabletop and side panels allow fixtures to be arranged around the workpiece.

    Request a Quote
    SKU: TA281510N Category: Tag:
    Description

    3D Welding Table 1500x1000x200mm D28 TA281510N

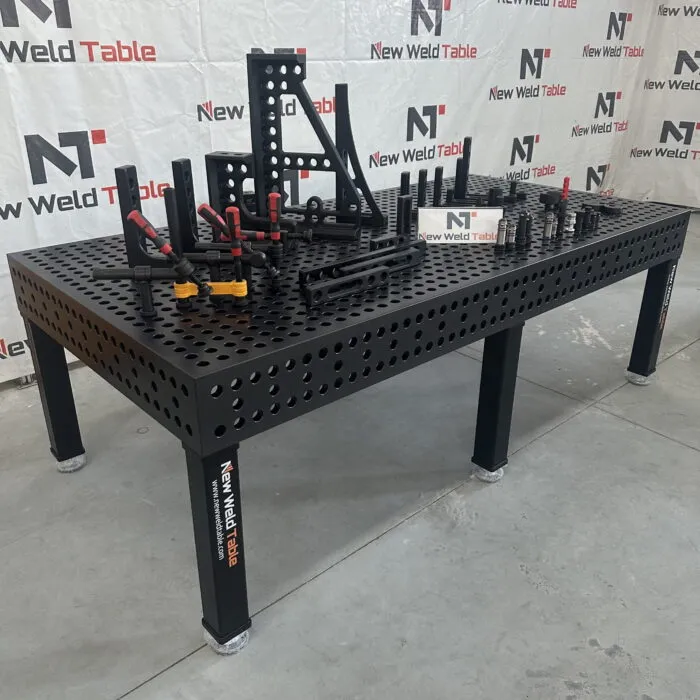

    The TA281510N provides a working surface for fabricating furniture frames, railings and welded components. D28 clamps, stops and locating accessories can be positioned to suit the shape and size of the workpiece.

    Tabletop holes are arranged on a 100 × 100 mm grid. Holes in the side panels provide additional mounting positions for angle brackets, supports and table extensions. Fixtures can be repositioned when changing between jobs.

    Main Features

    • 1500 × 1000 mm working surface for furniture frames and welded components.
    • D28 hole system for mounting D28 fixturing accessories.
    • Nitrided Q355B steel with a hardened working surface.
    • Top and side mounting holes for horizontal and vertical fixture setups.

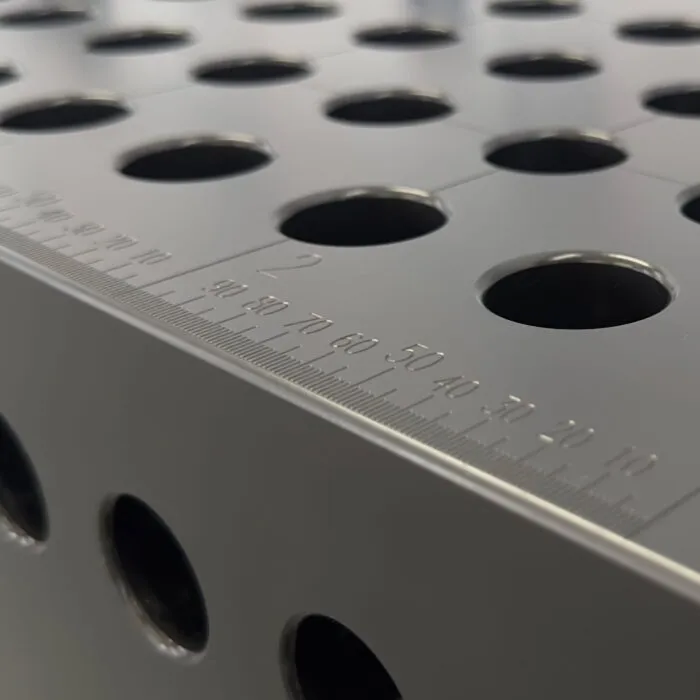

    • Grid markings and millimetre scales to help position workpieces and fixtures.
    • Reinforced underside with ribs supporting the tabletop.

    Technical Specifications

    Item Specification
    Model TA281510N
    Working surface 1500 × 1000 mm
    Hole system D28
    Tabletop hole spacing 100 × 100 mm
    Material Q355B steel
    Surface treatment Nitriding and oxidation
    Surface hardness HV 400–750
    Tabletop thickness 25 mm
    Side panel height 200 mm
