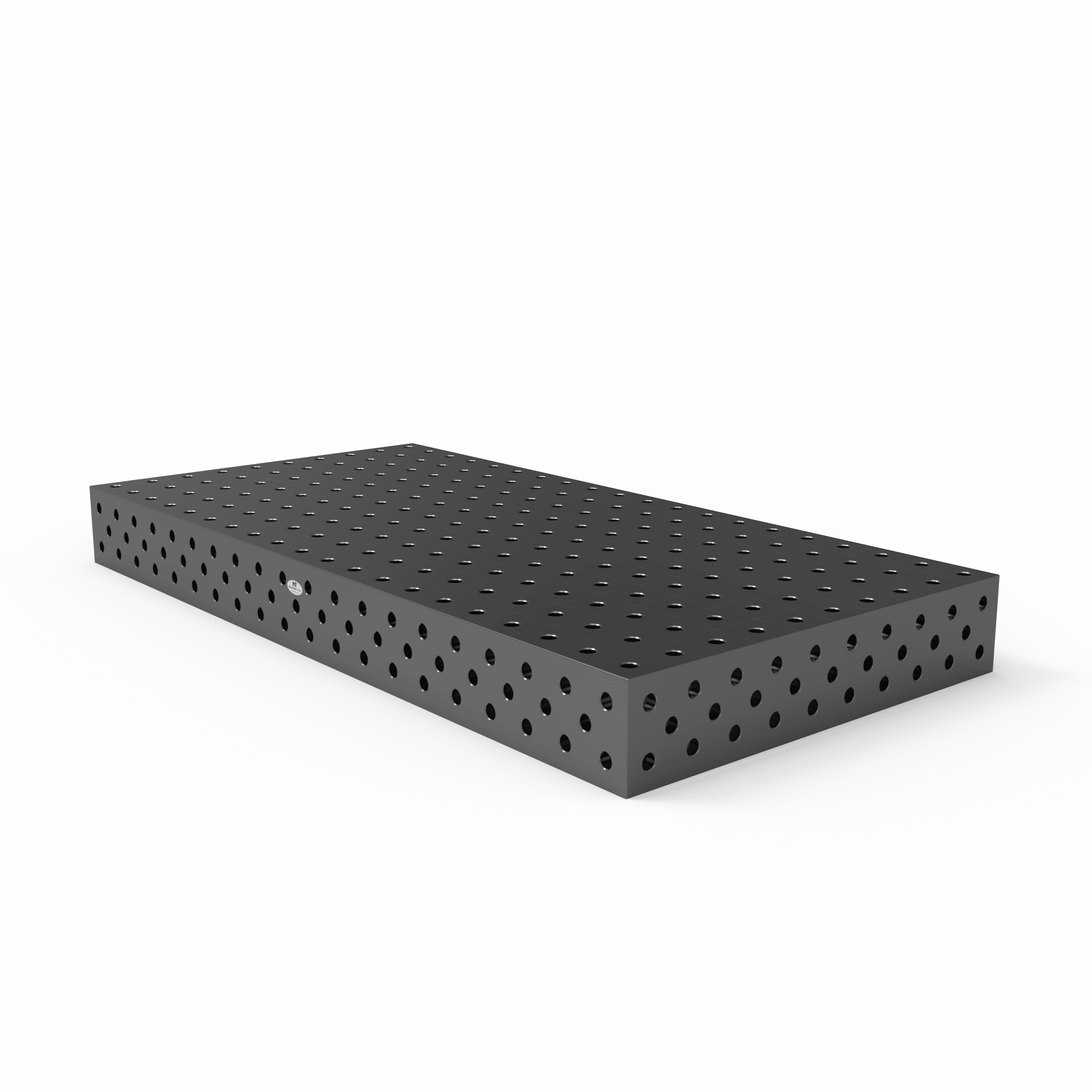

NWT-EX282010 D28 3D Welding Table 2000x1000mm
D28 3D welding table, 2000 × 1000 mm, with Q355B steel construction, 100 × 100 mm grid, nitriding and oxidation treatment, side-face clamping holes, coordinate markings and adjustable leveling feet.
- Configured for frame welding, fabrication and repeat production
- Compatible with modular D28 clamps, stops and angle tooling
- Factory quotation based on tooling, quantity and destination
D28 3D Welding Table 2000 × 1000 mm for Repeatable Fabrication
The NWT-EX282010 is a nitrided modular welding table configured for overseas fabrication shops, machine builders and distributors. Its 2000 × 1000 mm working area provides practical capacity for frames, railings, machine bases and small-batch assemblies without taking over the entire workshop.
Faster fixture setup
D28 holes on the top and side faces accept modular clamps, stops, angle blocks and support pins, reducing the need to build a new temporary fixture for every job.
Repeatable positioning
A 100 × 100 mm grid, millimeter scales and X/Y coordinate markings help operators record and reproduce part locations for repeat orders.
Workshop-ready surface
Q355B steel with nitriding and oxidation treatment improves resistance to daily wear, welding spatter and workshop humidity.
Built around your workpiece
Select the table, legs and D28 tooling as one export package based on workpiece size, clamping points, batch quantity and destination.
Technical Specifications
| Specification | Export Configuration |
|---|---|
| Model | NWT-EX282010 |
| Product Type | Modular 3D welding table / welding fixture platform |
| Working Size | 2000 × 1000 mm |
| Hole System | D28 system holes on worktop and side faces |
| Grid Spacing | 100 × 100 mm |
| Material | Q355B steel |
| Surface Treatment | Nitriding + oxidation treatment |
| Nitriding Layer | Approximately 0.2 mm |
| Standard Flatness | ≤0.1 mm/m² |
| Positioning Marks | Grid lines, millimeter scales and X/Y coordinates |
| Support | Adjustable leveling feet; mobile or fixed options quoted separately |
| Price | Quoted according to table, leg, tooling and packing configuration |
Why Fabrication Shops Choose a 2000 × 1000 mm Table
This size covers many daily fabrication jobs while remaining accessible from all sides. It is suitable for workshops producing welded frames, brackets, guards, railings, machine components and prototypes. For longer assemblies, extension blocks or a second table can be aligned to increase the working length.
The side faces are part of the clamping system, not decorative aprons. They allow vertical positioning, edge clamping and three-dimensional fixture arrangements for parts that cannot be secured on a flat surface alone.
Typical Applications
- Machine frames, equipment bases and welded structural assemblies
- Metal furniture, gates, railings and architectural fabrication
- Small-batch production requiring repeatable fixture positions
- Prototype work, repair jobs and maintenance workshops
- Distributor packages combining a table with selected D28 tooling
Configure the Tooling Around Your Work

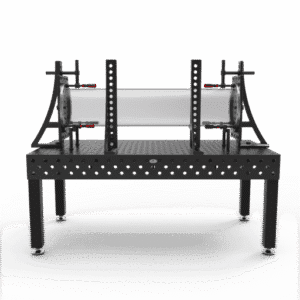

A welding table is only useful when its tooling matches the job. Available D28 options include quick clamps, stops, clamping squares, angle blocks, support pins, extension blocks and tooling carts. Send a drawing or several workpiece photos and we can help identify the required clamping points before quotation.
- Required table size and preferred working height
- Workpiece dimensions, approximate weight and material
- Typical batch quantity and repeat-production requirements
- Required clamps, stops, squares or complete tooling set
- Order quantity, destination country and destination port
Inspection, Packing and Export Preparation
Before shipment, the confirmed configuration is checked against the order specification, including table dimensions, hole system, supplied tooling and visible surface condition. Packing is selected according to the shipment method and destination. Wooden-case, steel-frame or reinforced export packing can be discussed during quotation.
For customized orders, final dimensions, surface treatment, leg arrangement and accessory quantities are confirmed on the order sheet before production. This prevents ambiguity between the website configuration and the table that arrives at your workshop.
Frequently Asked Questions
Is D28 tooling included with the table?
The base quotation can include the table and support legs only, or a complete tooling package. Tell us what you weld and we will list every included clamp, stop and square separately.
Can the table size or working height be changed?
Yes. Standard and customized configurations are available. Final feasibility, dimensions and lead time are confirmed before order acceptance.
What does nitriding do?
Nitriding hardens the treated surface layer and improves resistance to wear, welding spatter adhesion and corrosion. Proper cleaning and maintenance are still required during long-term workshop use.
Can two tables be connected for larger workpieces?
Tables and extension components can be arranged for longer assemblies. Share the overall workpiece length and required joint positions so the connection method can be reviewed.
How do I receive a formal quotation?
Send the table size, tooling list, quantity and destination. If the tooling is not yet decided, send workpiece drawings or photos and describe the welding process.
Request a Configuration and Export Quote
Tell us what you manufacture, the largest workpiece you need to fixture and where the order will be shipped. We will prepare a table-and-tooling recommendation for review.
