Description
- 3D welding table is made of ST52.3 material with nitriding + oxidising treatment and 0.2mm nitriding layer on the surface, which is effective in preventing corrosion, non-stick slag and resistant to bumping.
- With D28 system holes, Double grid 100 mm x 100 mm
- Three side rows of grid D28 system holes, 100 mm apart, thus significantly increasing the table extension and clamping area
- Available in various table sizes, surface hardness up to 600 Vickers.
- Optimized chamfering of the outer edge of the table,lRounded corners reduce the risk of injury
- Improved table stability by adding ribbed plates
- Grid lines with 100 mm spacing in X and Y directions
- Millimeter precision scales
- Table surface marked with X and Y coordinates
- New Weld Table logo on two sides of the table
- Round universal feet for precise height adjustment of the table
- The rib spacing is 400-500mm, providing strong support.
- Side holes arranged diagonally
|
Material |
Q355B+Nitrided+Oxidation |
|
Surface Hardness |
HV400-600 |
|
Scale |
Two adjacent sides have mm scales |
|
Load |
Each table leg load 800kg |
|
Hole spacing |
100mm |
|
Hole size |
28.05---28.15mm |
|
Thickness |
25mm |
|
Side panel height |
200mm |
|
Top Hole· |
Side Hole |
|
|
 |
|
Size(mm) |
Weight(kg) |
SKU |
Table legs |
|

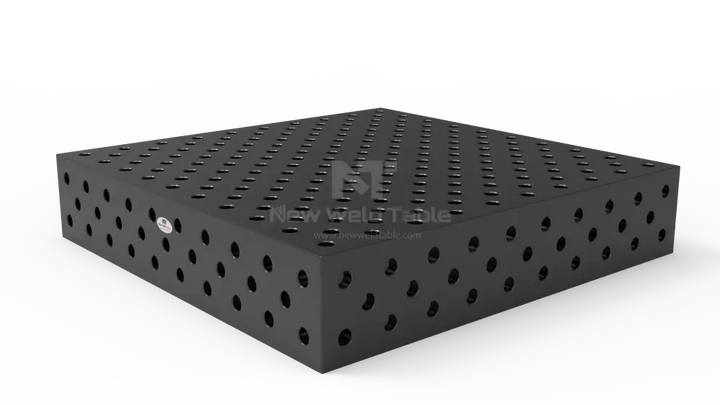

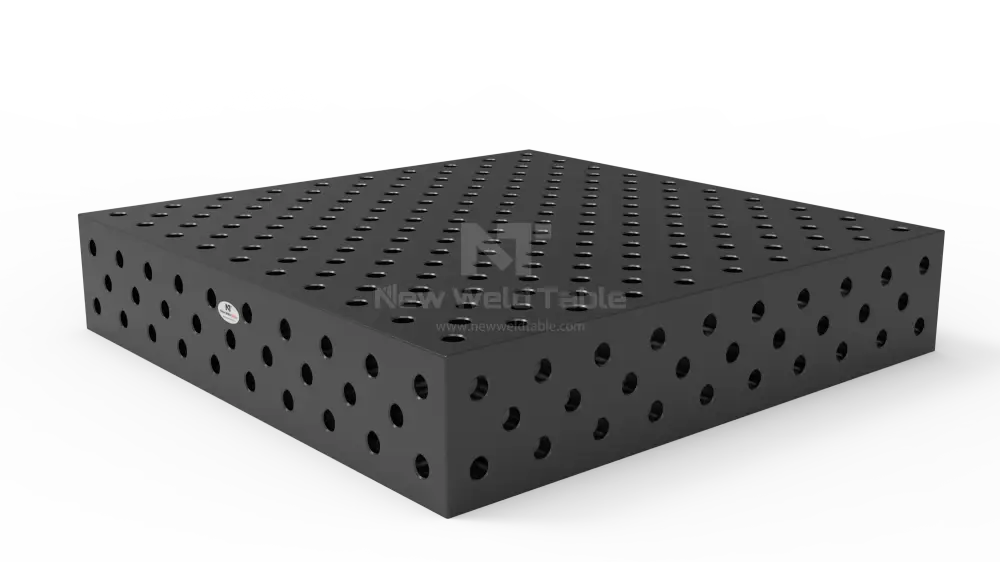

1000x1000x200 |
330 |
TA281010D |
4 |
|

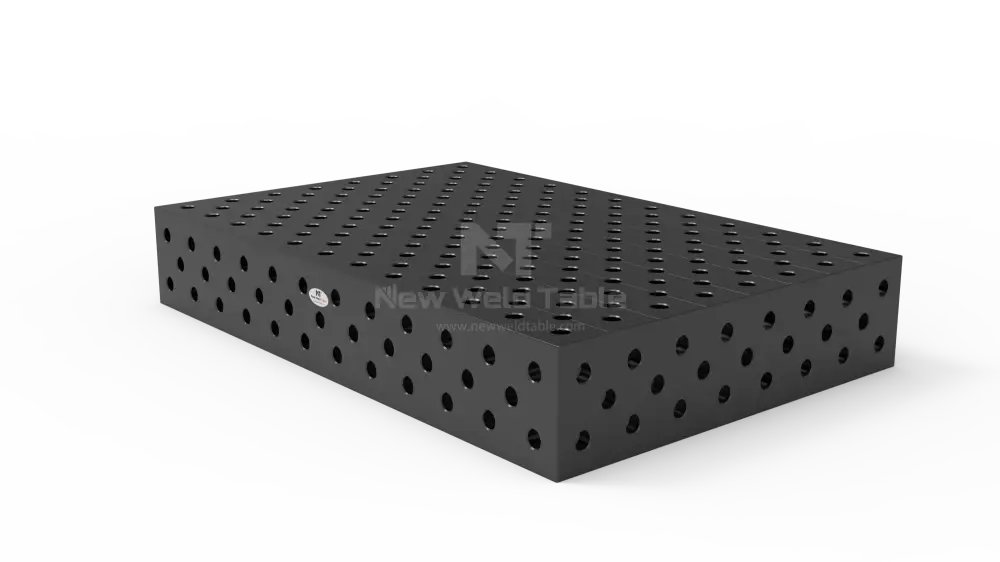

1200x800x200 |
330 |
TA281208D |
4 |
|

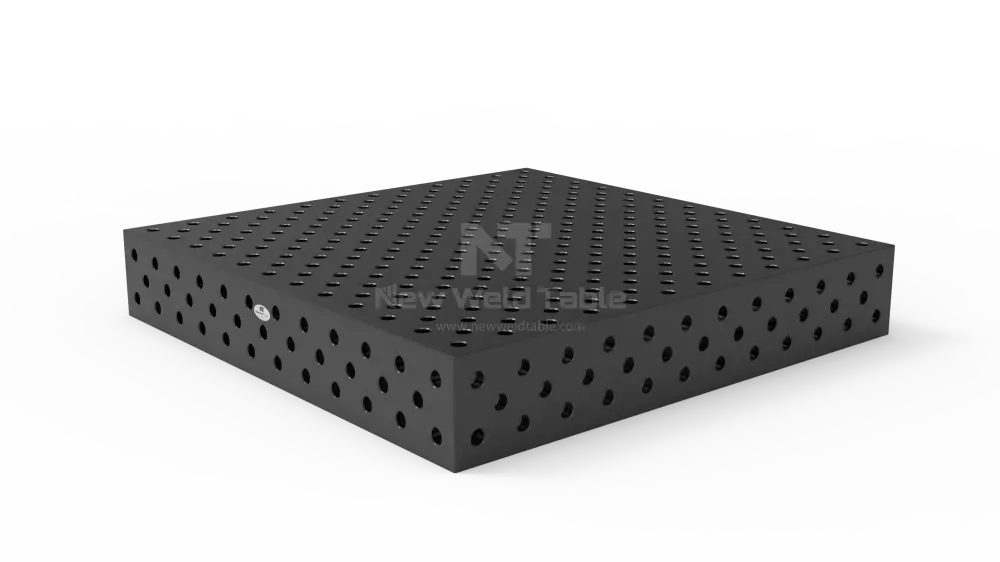

1200x1200x200 |
450 |
TA281212D |
4 |
|
1500x1000x200 |
490 |
TA281510D |
4 |
|

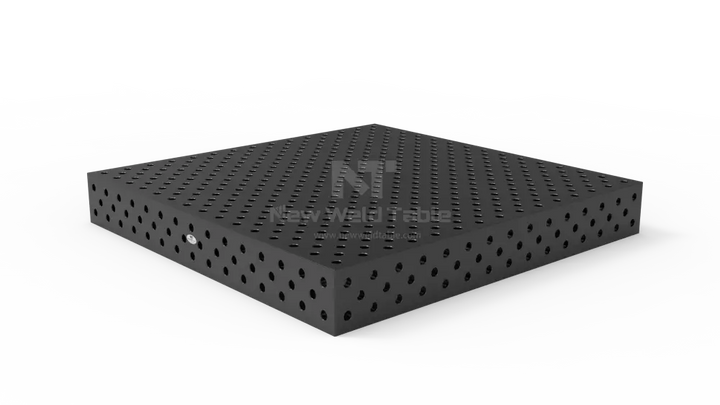

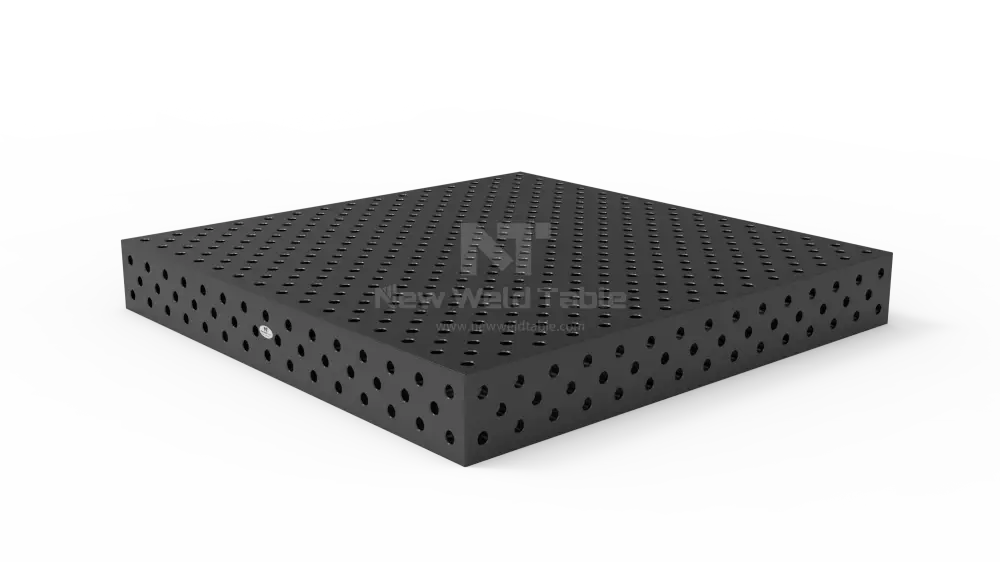

1500x1500x200 |
690 |
TA281515D |
4 |
|
2000x1000x200 |
620 |
TA282010D |
4 |
|

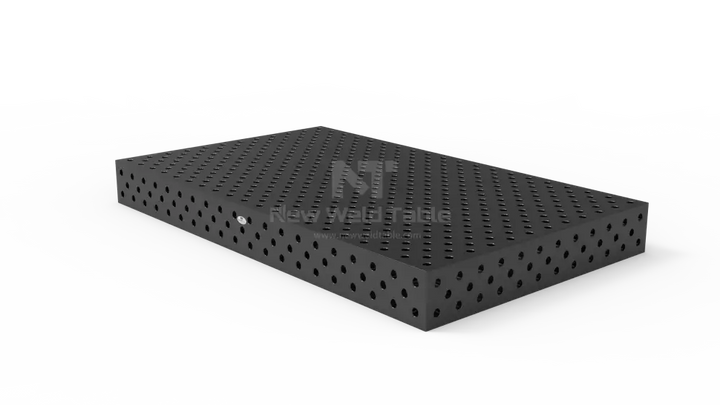

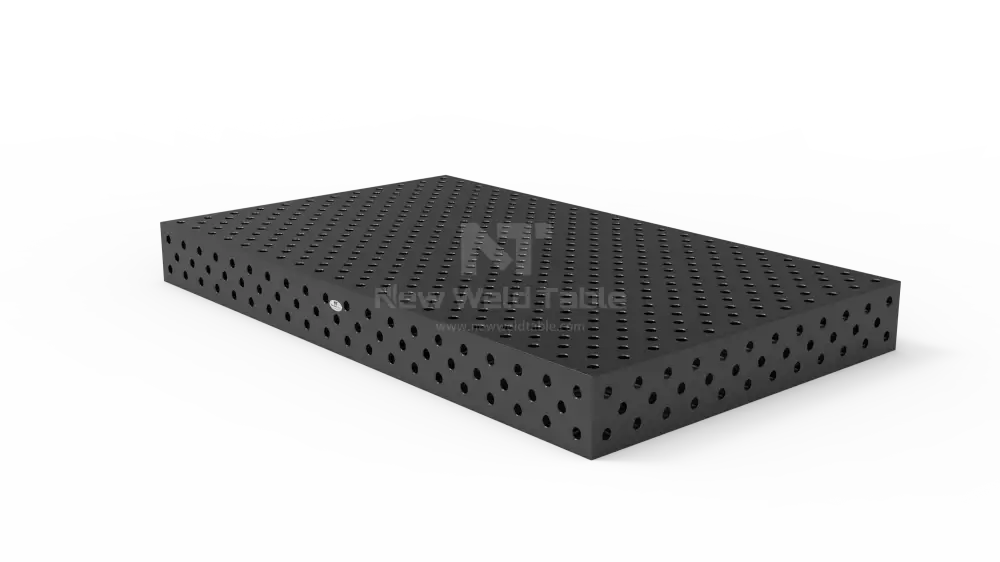

2000x1200x200 |
750 |
TA282012D |
4 |
|
2000x2000x200 |
1180 |
TA282020D |
6 |
|

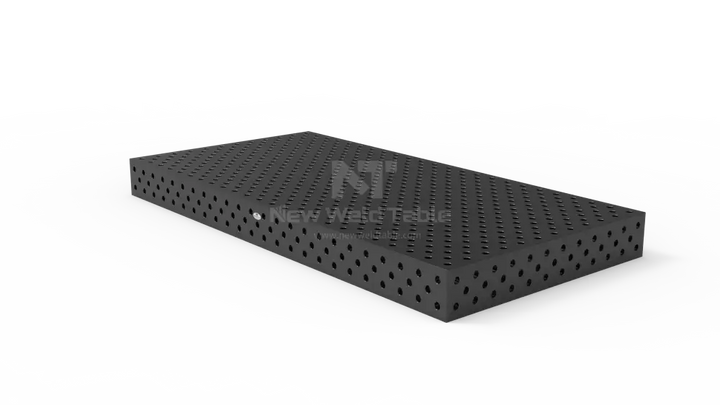

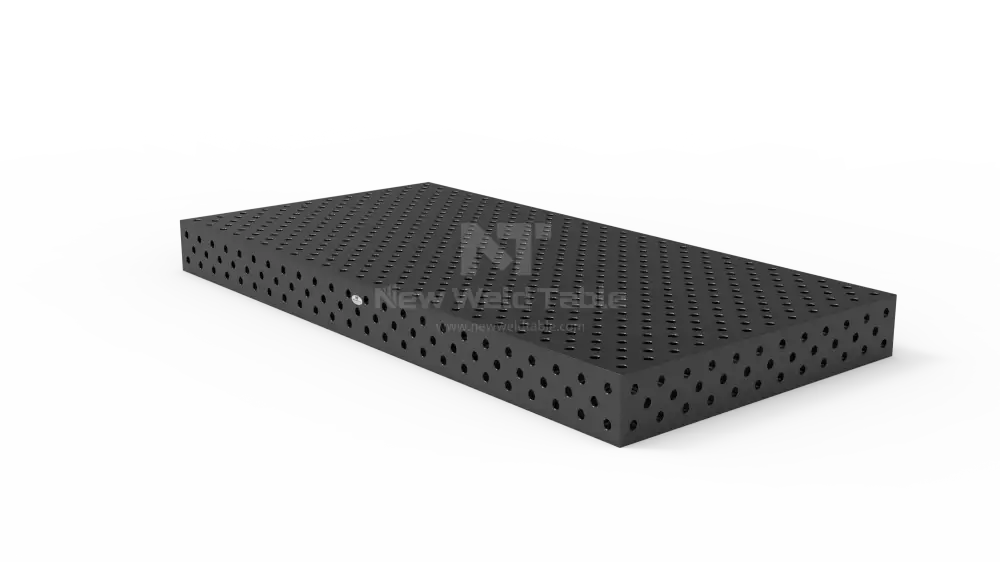

2400x1200x200 |
850 |
TA282412D |
6 |
|

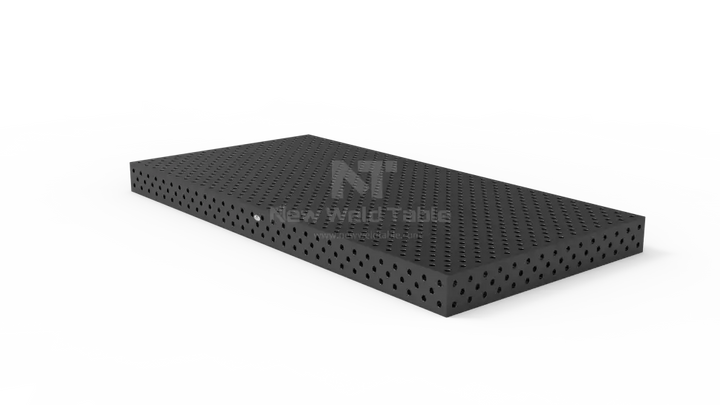

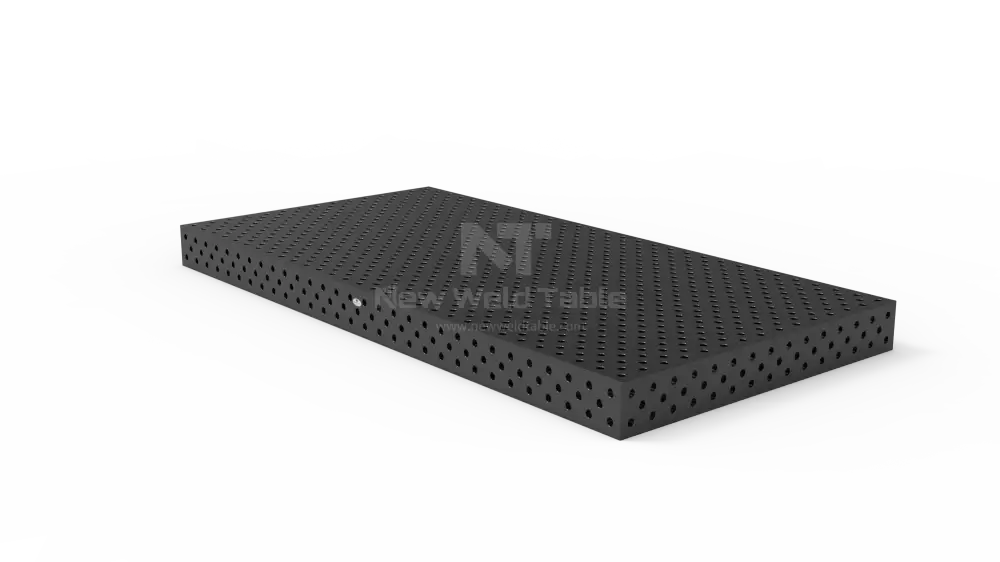

3000x1500x200 |
1300 |
TA283015D |
6 |
|

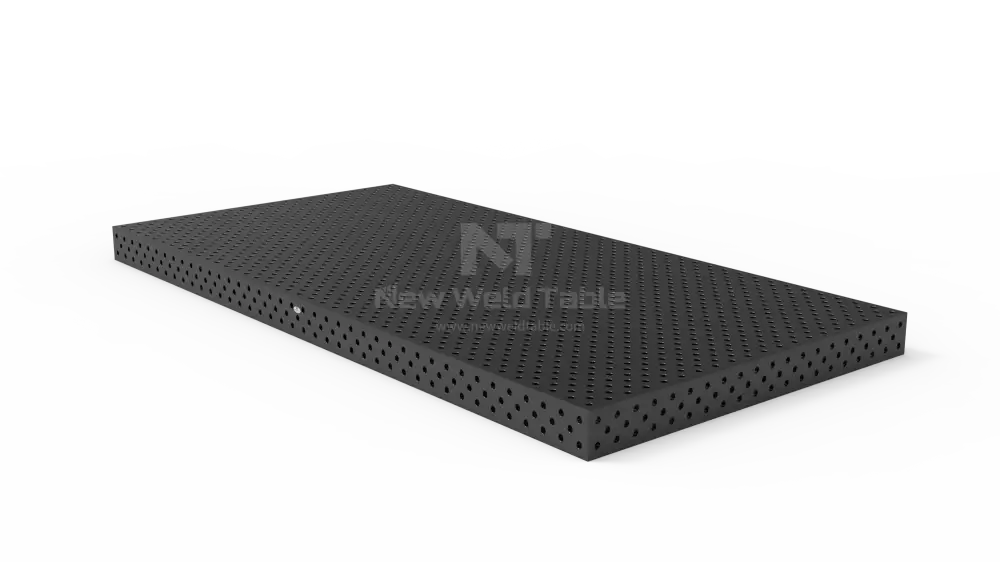

4000x2000x200 |
2300 |
TA284020D |
8 |
Additional Information
| Size |
1000x1000x200, 1200x800x200, 1200x1200x200, 1500x1500x200, 2000x1200x200, 2400x1200x200, 3000x1500x200, 4000x2000x200 |
|---|
3D welding table & Diagonal holes & Nitrided With table legs
